Eccentric concrete vibrator
ZPN26/35/45/55/65High-frequency, Better vibration!

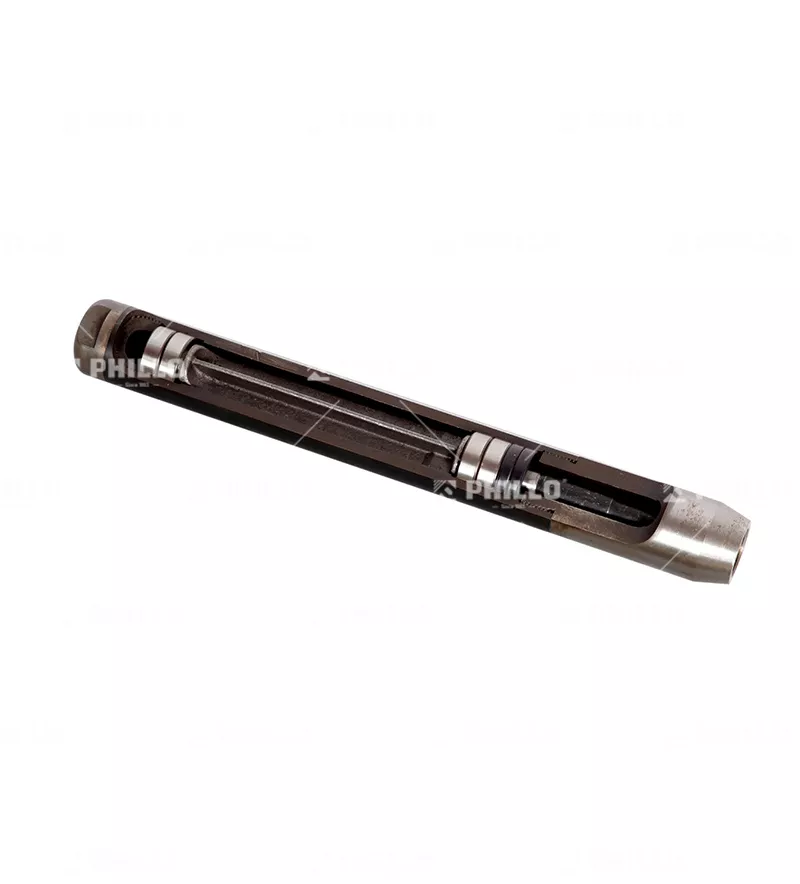

Driven by the motor/engine with loaded speed 12000RPM and non-loaded speed 15000~18000RPM, eccentric vibrators’ vibration frequency generated is equal to the rotational speed of the motor and flex shaft by its unique eccentric poker head structure design. No speed lose leads to a higher frequency and better compaction in concrete to avoid large bubble, with a lower noise. It is a perfect tool of worksite which needs more solid concrete but allow lower noise.
Parameters

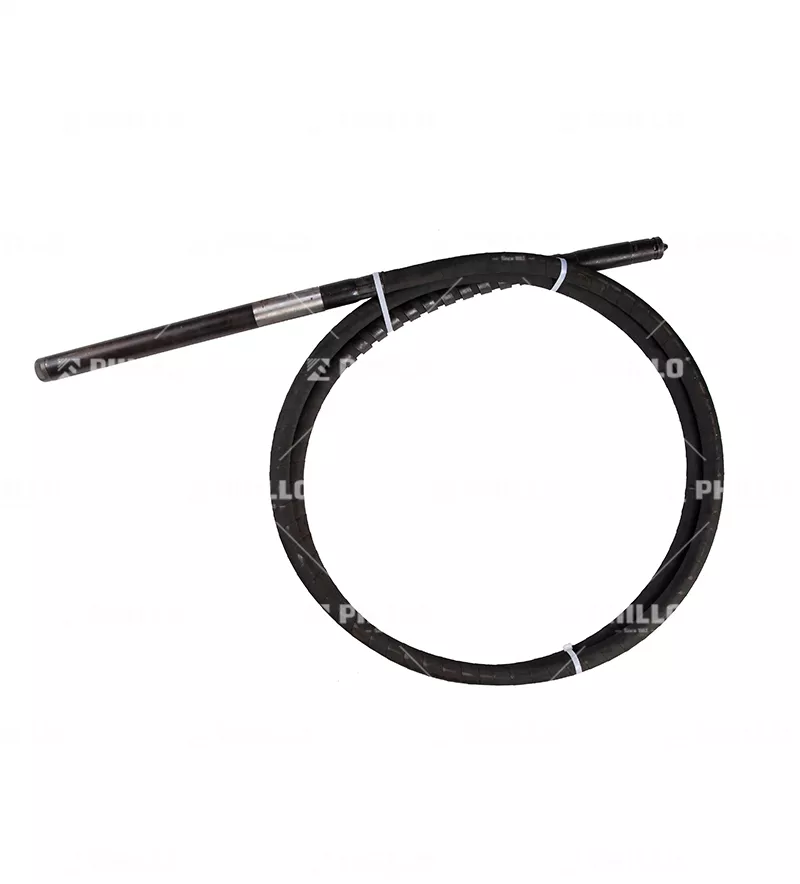

PHILLO SHAFT INFO
No | Model No. | Poker head dia* length(mm) | Flexible shaft dia (mm) | Rubber hose dia(mm) | Rubber hose length(m) |
1 | ZPN26 | 26*391 | 8 | 21 | 1m~9m, could be customized |
2 | ZPN35 | 35*410 | 9.15 | 27 | |
3 | ZPN45 | 45*387 | |||
4 | ZPN45-2 | 45*421 | |||
5 | ZPN55 | 57*410 | |||
6 | ZPN65 | 65*385 |

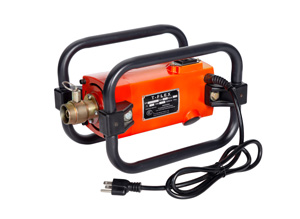

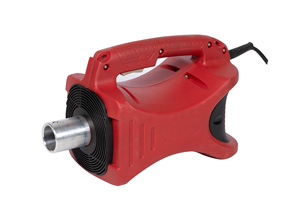

PHILLO MOTOR INFO
No | Model No. | Voltage V | Power | Picture |
1 | ZPM3HP | 230v/50-60Hz | 3HP/2.3KW |
|
2 | ZPM3HP-II | 110v/50-60Hz | ||
3 | ZPM4 | 230v/50-60Hz | 4HP/3KW |
|
4 | ZPM4HP-II | 110v/50-60Hz |
FEATURES
▶︎ Higher vibration speed around 10000~12000rpm;
▶︎ With larger excitation force, produce better vibration effect;
▶︎ High-temperature & Oil resistant flexible shaft and rubber hose used to ensure reliable use life;
▶︎ Poker head & Hose assembly designed could be compatible with other brands;
▶︎ Powered by Honda engine or motor with CE certificate;
▶︎ Germany, Spain and Israel and other types of couplings available;
▶︎ Motors of 3Hp and 4Hp available;
