Handheld concrete vibrator
ZSN25/32/35/38/45/50/60Easy-Take vibrators for small concrete pouring worksite!

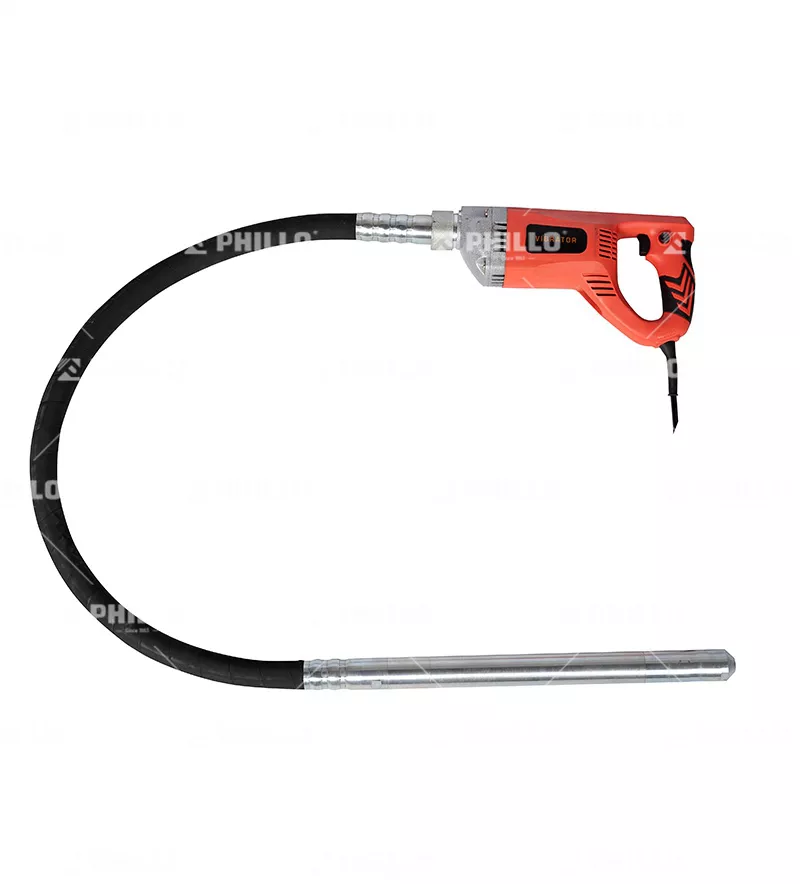

Light-weight, portable and compact design for all day use, PHILLO-ZSN Handheld electric pendulum concrete vibrator is ideal for construction, patching and other concrete repair jobs. It helps to remove bubbles, and make the concrete flat.
Parameters
ZSN series Handheld elctric pendulum concrete vibrator | |||||||
No | Model No. | Poker head dia* length(mm) | Flexible shaft dia (mm) | Rubber hose dia(mm) | Rubber hose length(m) | Amplitude(mm) | Vibration Hz (V.P.M) |
Total value | |||||||
1 | ZSN25 | 28*380 | 8 | 25 | 0.6~3.6, could be customized | 1.4 |
|
2 | ZSN32 | 32*470 | 10 | 30 | 1.5 | ||
3 | ZSN35 | 35*380 | 10 | 30 | 1.6 | ||
4 | ZSN38 | 38*470 | 10 | 30 | 1.7 | ||
5 | ZSN45 | 45*470 | 10 | 30 | 2 | ||
6 | ZSN50 | 50*450 | 13 | 36 | 2.2 | ||
7 | ZSN60 | 60*473 | 13 | 36 | 2.4 | ||
FEATURES
▶︎ Poker head 28mm~60mm and length during 1m~3.6m available;
▶︎ Pendulum type design, more economical;
▶︎ Powered by the 0.8kw ~ 1.5kw electric motor (around 4000RPM) with CE certificate;
▶︎ Lightweight and higher-mobility;
▶︎ Ergonomic handle design for easy operation and consistent use.
