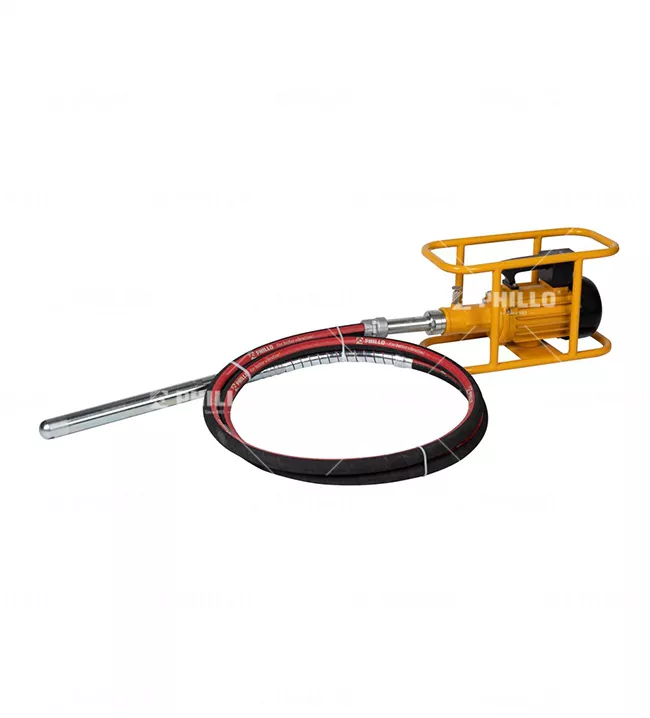

Pendulum concrete vibrator
PC28/32/38/45/60PHILLO PENDULUM VIBRATOR: Wise vibrators choice in worksite!
Pendulum concrete vibrators are the most widely used type on construction sites, known for their stable lifespan, economical price, and convenient connection to various power sources such as gasoline engines, diesel engines, and electric motors.
Parameters
PHILLO brand pendulum vibrators | |||||||
No | Model No. | Diameter | Length | Hose OD | Flexible D | Dynapac type Model No. | Japanese type Model No. |
(mm) | (mm) | (mm) | (mm) | ||||
1 | PC28 | 28 | 476 | 25 | 9 | PC28D | PC28J |
2 | PC32 | 32 | 495 | 30 | 10 | PC32D | PC32J |
3 | PC38 | 38 | 498 | 30 | 10 | PC38D | PC38J |
4 | PC45 | 45 | 498 | 32 | 12 | PC45D | PC45J |
5 | PC60 | 60 | 513 | 32 | 13 | PC60D | PC60J |
FEATURES
PHILLO brand could supply

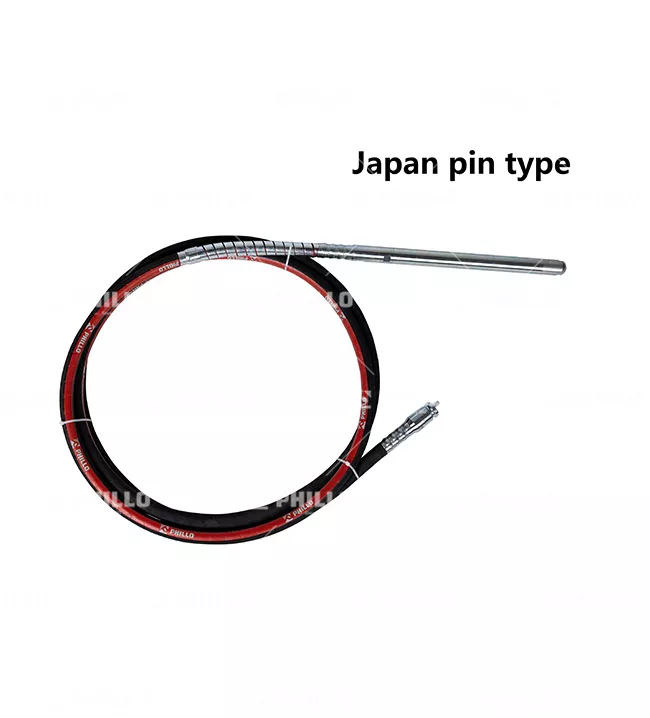

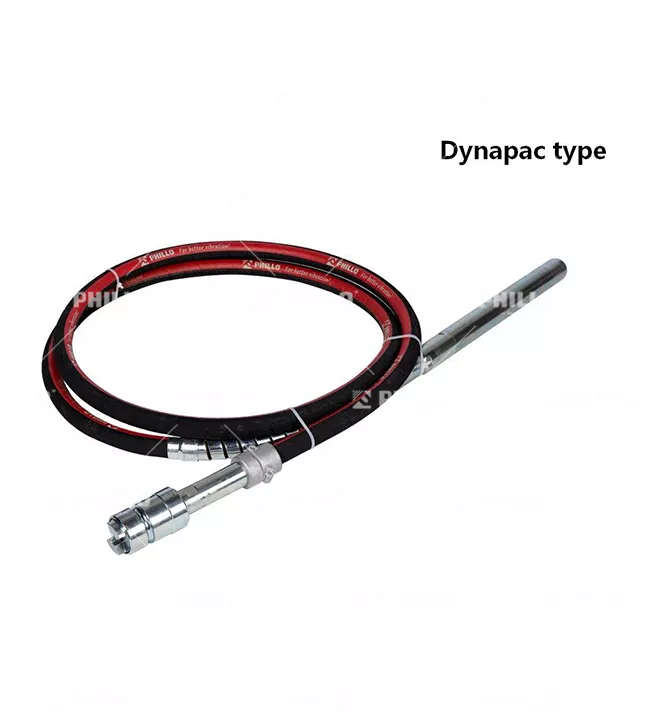

▶︎ Japan/Dynapac/Turkey/Russia/China types concrete vibrators available;
▶︎ Poker head Dia 28mm, 32mm, 38mm, 45mm, 60mm available;
▶︎ Long work reach (3m ~ 12m) could be customized in worksite;
▶︎ Powered by Original petrol/diesel engines Honda, Robin and other Good-quality China-made engines, with rotation speed around ~3000 RPM or electric motor 2840 RPM;
▶︎ Powered by HEAVY DUTY electrical motors with CE certificate available
