Plate Compactor

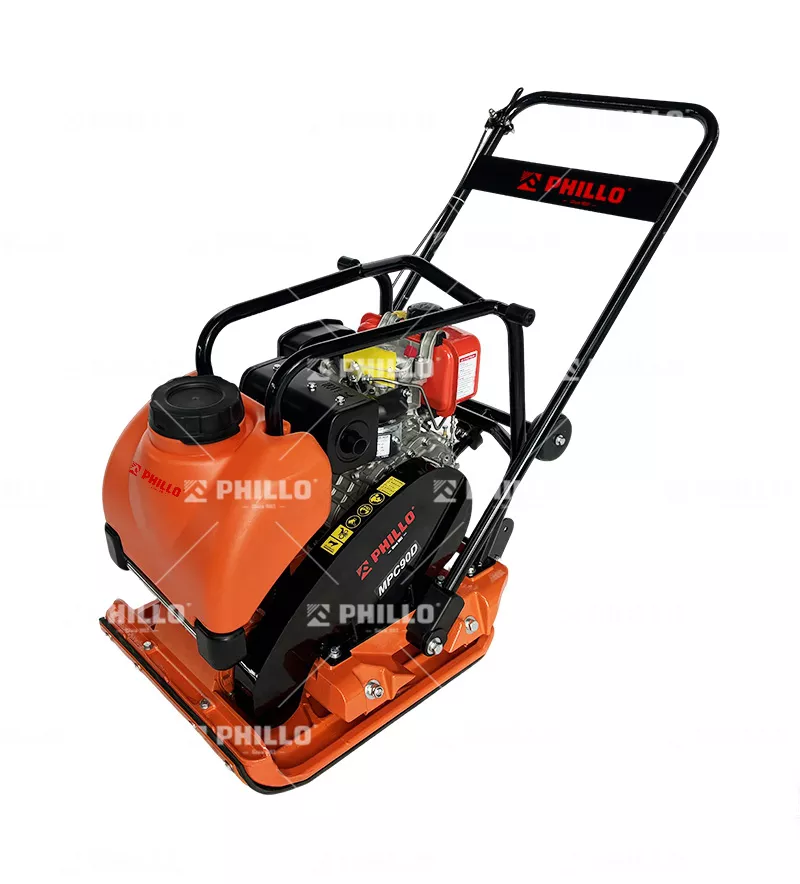

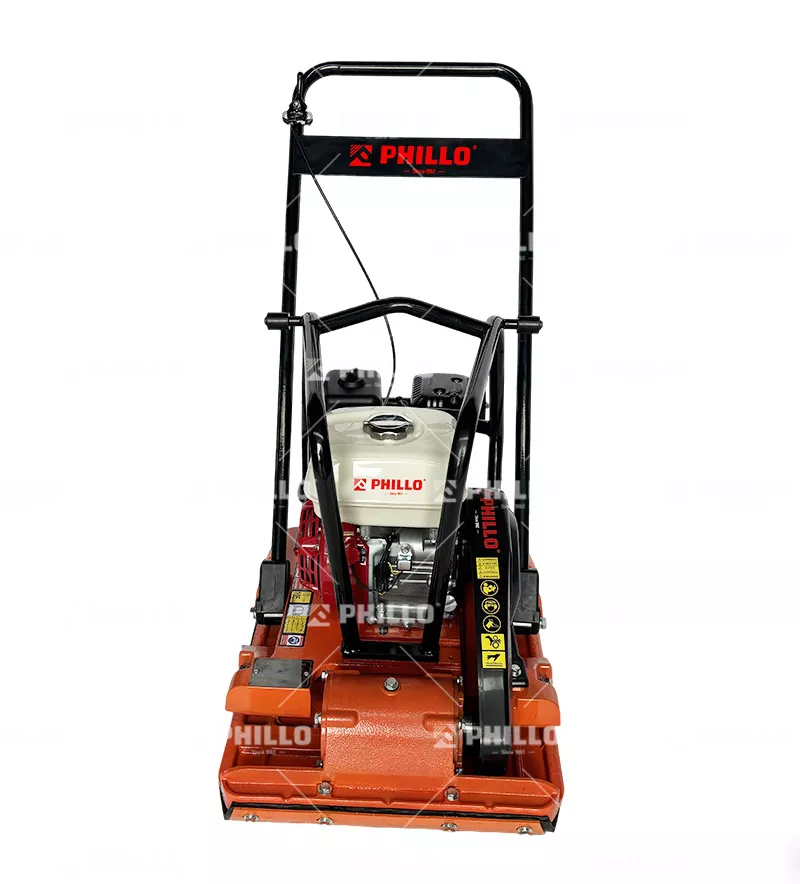

PCT106D/90D/90/106/115DPHILLO Plate Compactor is the essential machine for creating a solid, stable, and level base for all projects. Engineered for high-impact performance, it uses a powerful engine to vibrate a heavy base plate, forcefully driving down and consolidating soil, gravel, and sand.
Compact, powerful, and durable, the PHILLO Plate Compactor is designed to handle the most challenging compaction work.
Parameters
Model | PCT106D | PCT90D | PCT90 | PCT106 | PCT115D |
Operation weight(kgs) | 104 | 93.7 | 90 | 106 | 115 |
Base material | Nodular Casting Iron | ||||
Engine model | YANMAR L48N/KAMA173F | YANMAR L48N/KAMA173F | Honda GX160 | Honda GX160 | YANMAR L48N/KAMA173F |
Net Power | 3.1kw/4.2HP | 3.1kw/4.2HP | 3.6kw/4.8HP | 3.6kw/4.8HP | 3.1kw/4.2HP |
Frequency(vpm) | 6000 | 6000 | 6000 | 5880 | 5880 |
Impact force | 16Kn | 15Kn | 15Kn | 20Kn | 21Kn |
Shoe Size | 530*500mm | 590*500mm | |||
Working speed | 25m/min | 25m/min | 25m/min | 25m/min | 25m/min |
Limited Gradient % | 35 | 35 | 35 | 36.4 | 36.4 |
Compacting depth cm | 30 | 30 | 30 | 30 | 30 |
Area capacity(㎡/h) | 750 | 750 | 750 | 750 | 750 |
Water tank | Optional for set with KAMA | Optional for set with KAMA | Optional | Optional | / |
Bottom mat | Optional | Optional | Optional | Optional | Optional |
Packing Size(L*W*H) | 840*520*785(mm) | 1032*632*788(mm) | |||
FEATURES
▶︎ 90~115kgs,15~21Kn could be supplied;
▶︎ Powerful engines ( gasoline / diesel) supply stable enough power and longer uselife;
▶︎ Ductile iron base plate provides better durability;
▶︎ Open plate provides self-cleaning;
▶︎ Engine frame for good protection;
▶︎ Belt cover to prevent sand and soil in;
▶︎ Radius base plate for easy access to corners and option rubber plate for bricks paving;
▶︎ Throttle control on operating handle for easy operation;
▶︎ Single-point lifting hooks for easy loading and unloading;
▶︎ Water tank and rubber bottom mat for interlocking block could be optional;
▶︎ Professional and tough key parts ensure uselife ＞300H.
