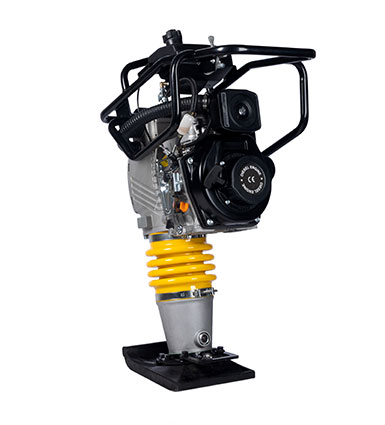

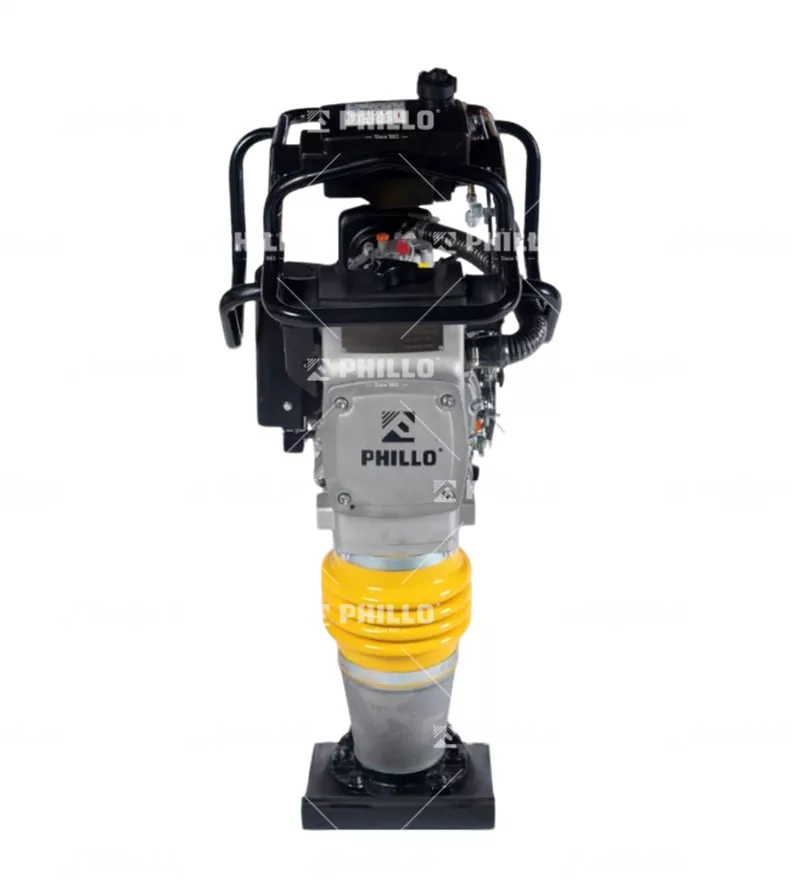

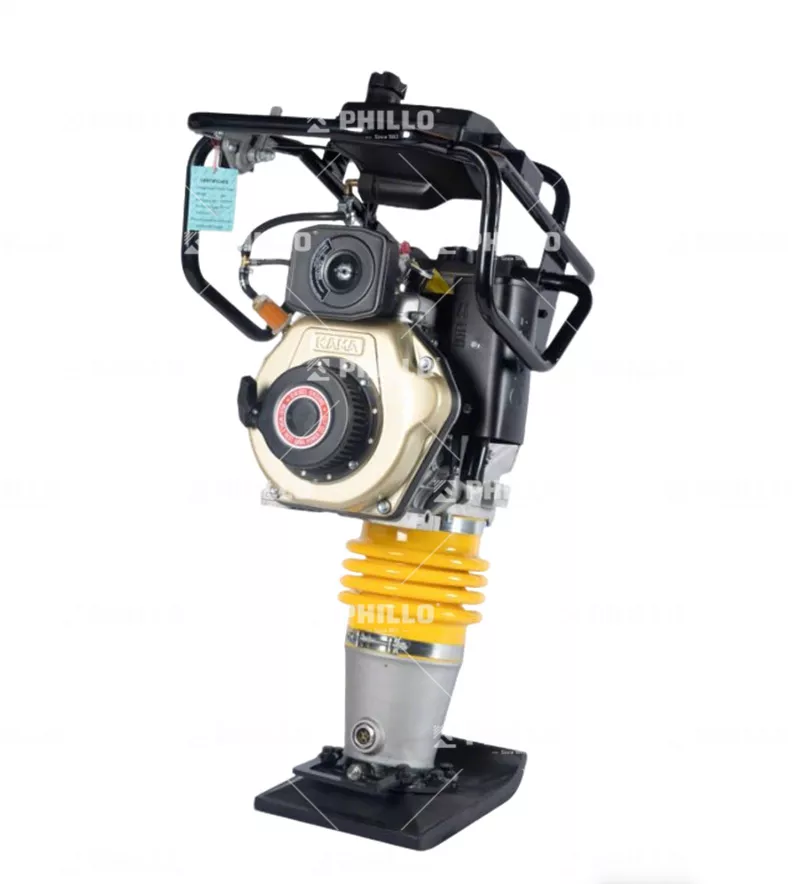

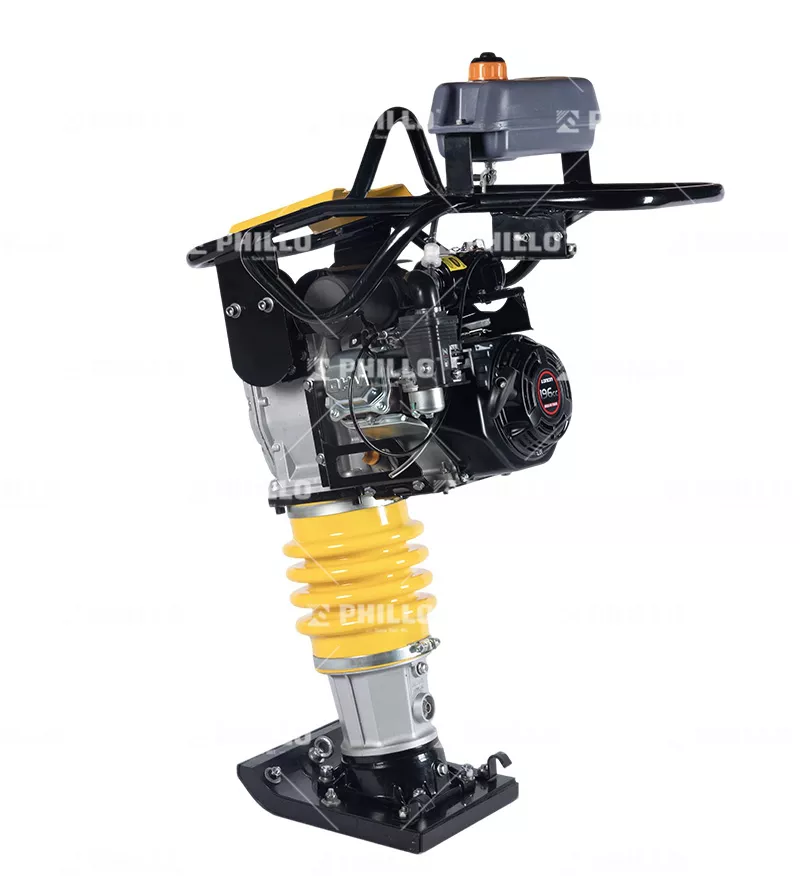

Tamping Rammer
PR85D/PR70A/PR70BDesigned for deep, vertical compaction, PHILLO Rammers deliver a powerful, focused blow to consolidate cohesive soils like clay and silt. The dynamic impact force creates a stable, high-density base that resists settlement. Its jumping-pad foot ensures thorough compaction while moving the machine forward with every stroke.
Parameters
Model | PR85D | PR70A | PR70B |
Net weight (Kgs) | 85 | 72 | 78 |
Base material | Nodular Casting Iron covered by rubber | ||
Engine model | YANMAR L48N/KAMA173F | HONDA GX100 | Robin EH-12D |
Net Power | 3.1kw/4.2HP | 2.1kw/2.8HP | 2.1Kw/2.8HP |
Speed (R.p.m.) | 3600 | 4000 | 3600 |
Jumping stroke(MM) | 40-80 | ||
Impact Force Kn | 19 | 17 | 18 |
Plate Size | 280*335mm | ||
Impact number (per min) | 600-700 | ||
Fuel tank | 2.8L | 2.2L | 2.2L |
Packing Size(L*W*H) | 1240*540*850(mm) | 1080*410*750（mm） | |
FEATURES
▶︎ Powerful compaction 19kN force x 700 impact x 80mm stroke at max;
▶︎ Powerful engines equipped with Dual air filtration for longer life;
▶︎ Good quality fuel lines and two-stage fuel filtration to reduces maintenance;
▶︎ Original robust bellows resists twisting;
▶︎ Original rugged foot made of wear-resistant Nodular Casting Iron covered by rubber;
▶︎ Throttle control on operating handle for easy operation;
▶︎ Outstanding body balance and natural rubber shock absorption maximizes work efficiency and minimizes operator's fatigue;
▶︎ All metal parts electromagnetically coated for superior rust protection;
▶︎ Single point lifting hook to make loading and unloading work easier;
▶︎ Professional and tough key parts ensure uselife ＞300H.
