Flex Drive Pump
TFP50/TFP80Submersible flex drive pumps are particularly used in harsh or extreme conditions, such as waste management, construction, mining, marine and agriculture. PHILLO flex drive pumps could source water from depth of up to 21m. The maximum flow is about 55m3 per hour, making it suitable for sewage discharge in various construction sites. Basing on different regions requirement, we developed Economical flex drive pump and High-end (Australia type) flex drive pump.
Parameters
Item | Model No. | TF P50 | TF P80 |
Pump specification | Outlet size (mm) | 50.8(2") | 76.2(3") |
Max lift（m） | 21 | 20 | |
Max flow capacity (m³/h） | 48 | 55 | |
Body material | Aluminum | ||

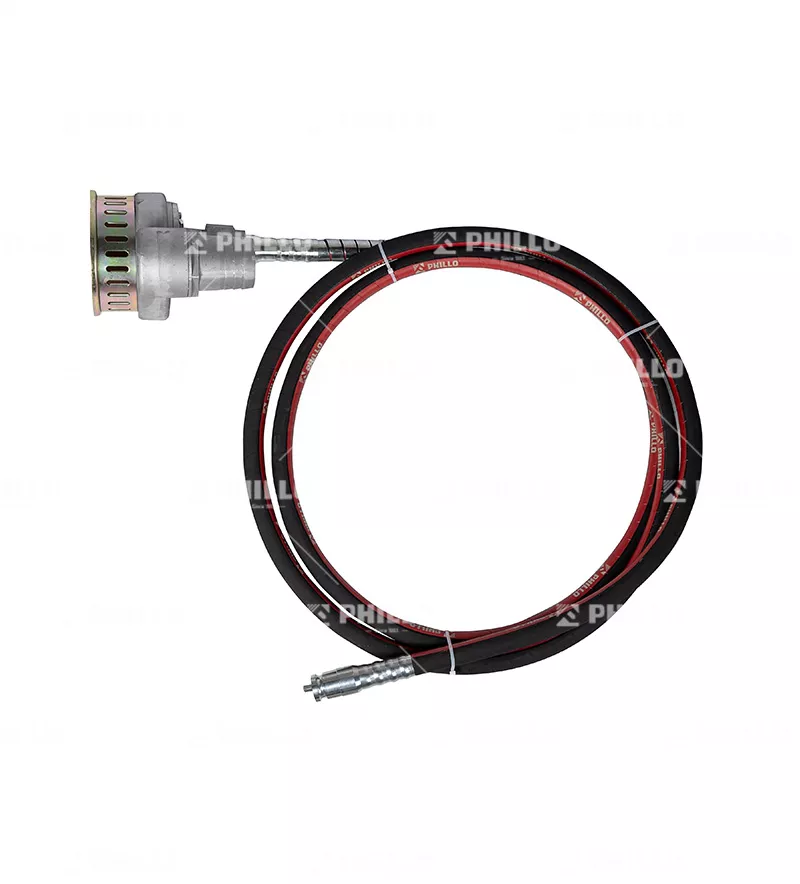

Hose & Flexible shaft specification | Hose outer diameter(mm) | 32/36 | |
Hose inner diameter (mm) | 18/20 | ||
Flexible shaft diamter(mm) | 13 | ||
Length (m) | 4~15 | ||
Drive unit | Honda GX160 Petrol/ Robin EY20 Petrol/ Yanmar L48N Diesel/ Other economical engines optional | ||
FEATURES
▶︎Complete aluminum pump housing makes product lighter and better rust-proof performance
▶︎ Hardened steel wear plates
▶︎Heavy duty coke resistant cast iron impeller
▶︎Bearing case of pump head is designed to get high durability and easy maintenance
Optional choice:
▶︎ 1, Outlet size 2’’ or 3’’ could be ordered

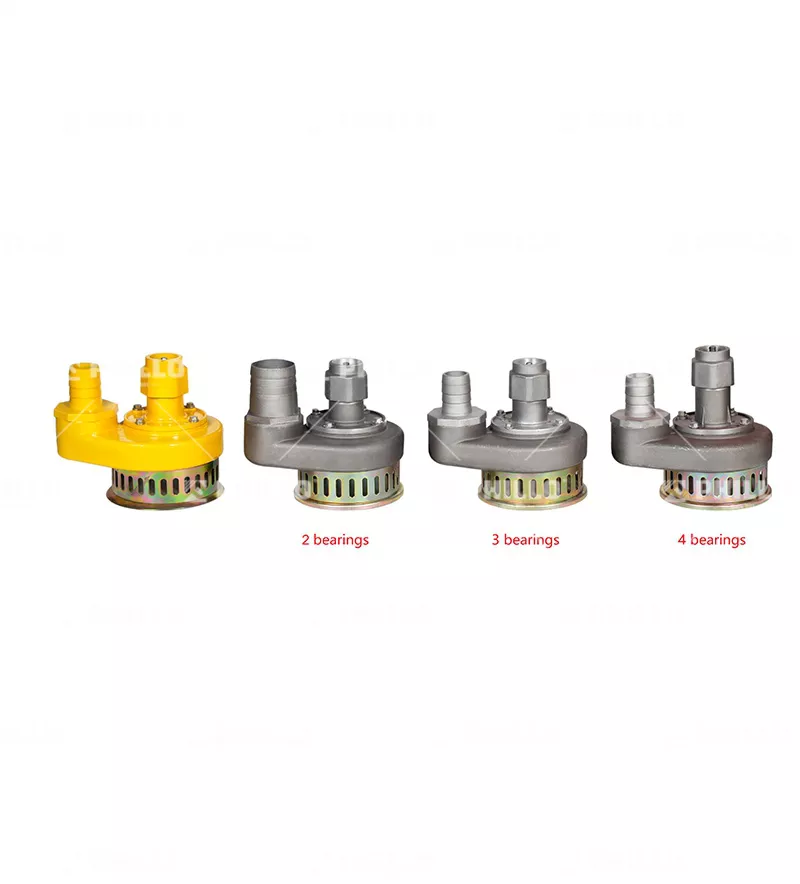

▶︎ 2, 3 or 4 bearings could be ordered to strength the durability
