Flex Drive Pump

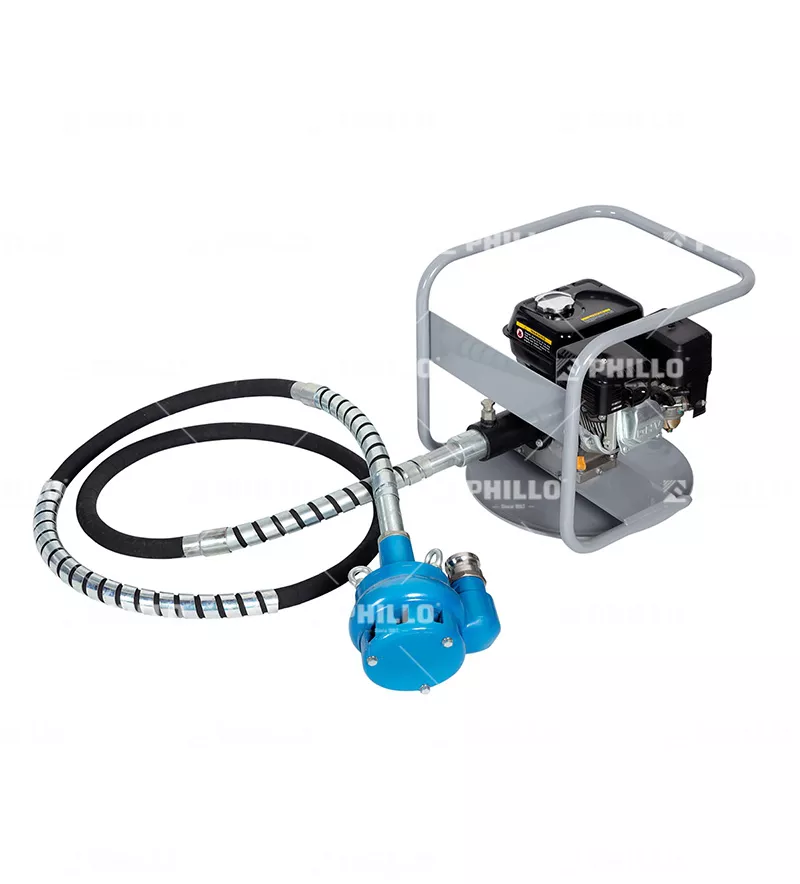

TFP50ABesides of standard type flex drive pump TFP50/TFP80, PHILLO brand supply High-end flex drive pump TFP50A. It is designed with bigger flex shaft and rubber hose assembly to supply more heavy-duty power in some harsh work site.
Parameters
Item | Model No. | TF P50A | TF P50A |
Pump specification | Outlet size (mm) | 50.8(2") | 50.8(2") |
Max lift（m） | 26 | 26 | |
Max flow capacity (m³/h） | 50 | 50 | |
Body material | Aluminum | Iron | |
Hose & Flexible shaft specification | Hose outer diameter(mm) | 38 | |
Hose inner diameter (mm) | 21 | ||
Flexible shaft diameter(mm) | 15 | ||
Length (m) | 4~15 | ||
Drive unit | Petrol or diesel engine with Min 3.7 kW (5hp), Electric motor drive unit with Min 2.2 kW (3 hp) | ||
FEATURES
▶︎ Thick aluminum or cast iron pump housing makes product lighter and better rust-proof performance
▶︎ Heavy duty & double row bearings are designed to get high durability and easy maintenance
▶︎ Oil bath lubrication
▶︎ Lifting eyelets
▶︎ Hardened steel wear plates
▶︎ Heavy duty coke resistant cast iron impeller
▶︎ 28mm solids pumping capacity
▶︎ Seven oil seals for superior bearing protection

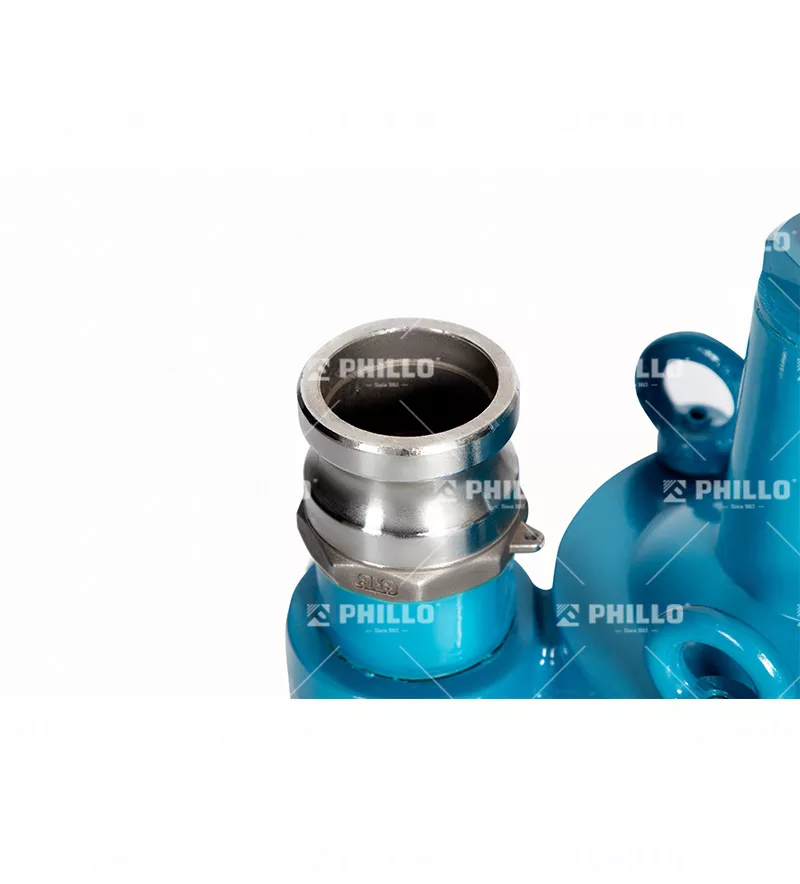

▶︎ Quick action cam-lock hose fittings
