Concrete cutter

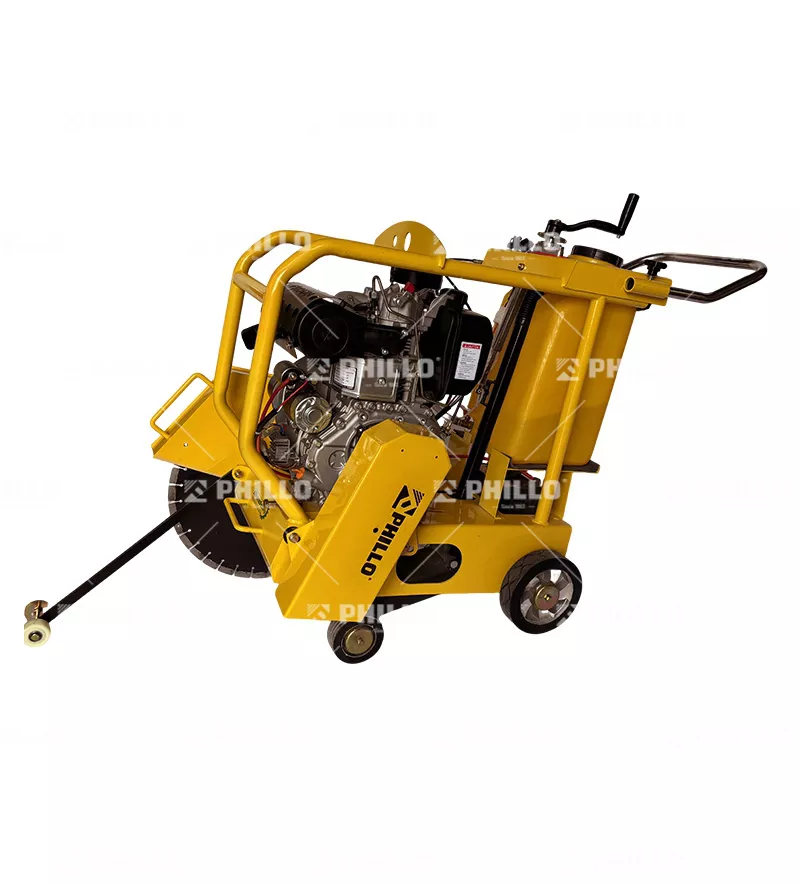

PCC500D/ PCC500Standard Type: PCC500D/PCC500
Supplied as a standard type, the PHILLO brand PCC500D/PCC500 is a cutter that can use either a diesel or gasoline engine. It is equipped with 18~20 inch diamond-edged blades and operates in the most traditional way: handwheel rotation is used to adjust the cutting depth, which is measured manually. The machine can only be pushed forward.
Parameters
Model | PCC500D | PCC500 |
Engine Model | Diesel Kama 188F | Gasoline GX390 |
Rated Power/Speed | 7Kw/9.5HP | 8.7Kw/11.7HP |
Fuel tank capacity | 5.5L | 6.1L |
Work Revolution (r.min) | 3750 | 3750 |
Blade Diameter (mm) | 450mm-500mm (18inch-20inch) | 450mm-500mm (18inch-20inch) |
Balde fitting hole Diameter (mm) | 25.4/50 | 25.4/50 |
Max cutting depth (mm) | 190 | 190 |
Depth Adjustment Mechanism | Handwheel rotation | Handwheel rotation |
Water tank Capacity L | 24 | 24 |
Net weight(kgs) | 130 | 112.5 |
Gross weight（Kgs） | 165 | 147.5 |
Operating size mm(in) | 1050*630*1100 | 1050*630*1100 |
FEATURES
▶︎ Cutting depth 190mm at max;
▶︎ Cutting gauge;
▶︎ Diesel engine KAMA ( eclectic start) and Gasoline engine Honda GX390( electric start or recoil start ) available;
▶︎ Only Gasoline type has emergency stop switch while unavailable in Diesel type;
▶︎ Water tank (24lits);
▶︎ Blade guard for operator protection;
▶︎ Single-point lifting hooks for easy loading and unloading.
