Concrete cutter

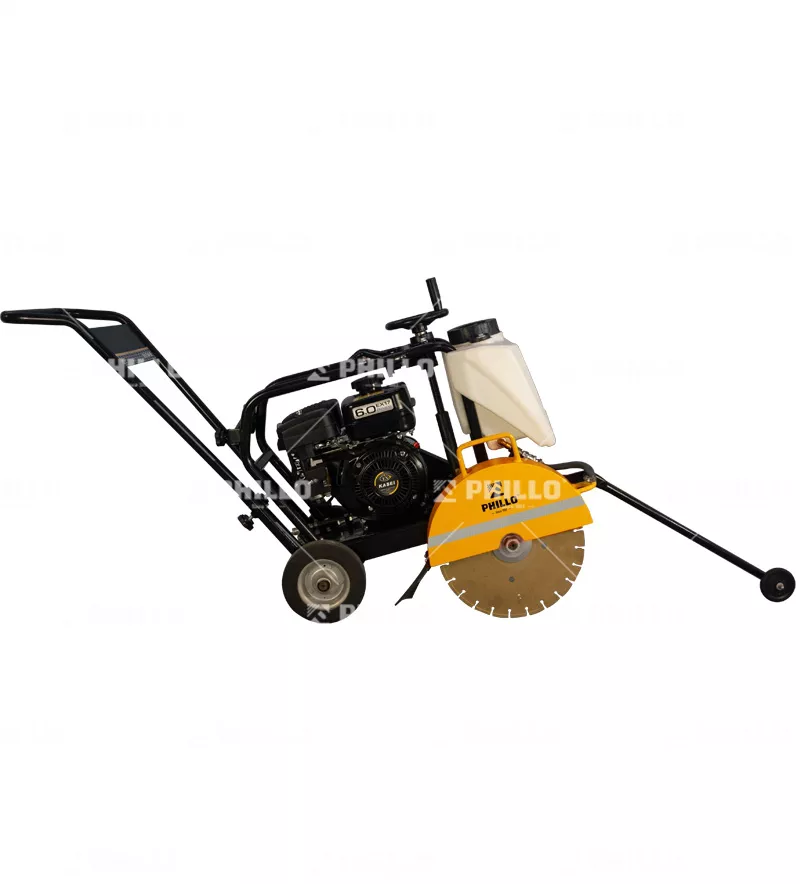

PCC350Professional Type: PCC350
PHILLO brand PCC350 is a Professional type cutter assembled with 14inch diamond-edged blades, perfect for the worksite which requires the smaller size of cutters.
Parameters
Model | PCC350 |
Engine Model | Honda GX160/Loncin G200F |
Rated Power/Speed | 3.6Kw/4.8HP/ 4.1Kw/5.5HP |
Fuel tank capacity | 3.1L/3.6L |
Work Revolution (r.min) | 3750 |
Blade Diameter (mm) | 350mm (14inch) |
Balde fitting hole Diameter (mm) | 25.4/50 |
Max cutting depth (mm) | 90 |
Depth Adjustment Mechanism | Handwheel rotation |
Water tank Capacity L | 14 |
Net weight(kgs) | 72 |
Gross weight（Kgs） | 90 |
Operating size mm(in) | 980*550*870 |
FEATURES
▶︎ Cutting depth 90mm at max;
▶︎ Cutting gauge;
▶︎ Gasoline engine Honda GX160(with oil sensor ) or economic engine Loncin G200F (without oil sensor )could be optioned;
▶︎ No emergency stop switch;
▶︎ Handwheel rotation adjusts the cutting depth and measured manually;
▶︎ Travel method: manual push forward;
▶︎ Water tank (14lits);
▶︎ Blade guard for operator protection;
▶︎ Single-point lifting hooks for easy loading and unloading.
