Frequency and Voltage Converters

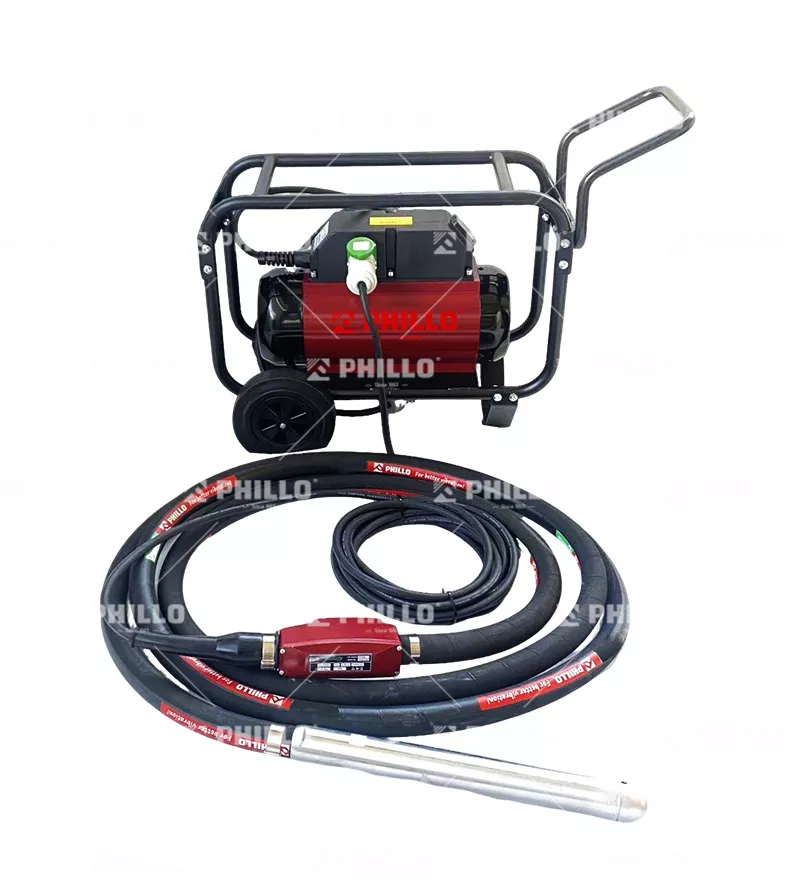

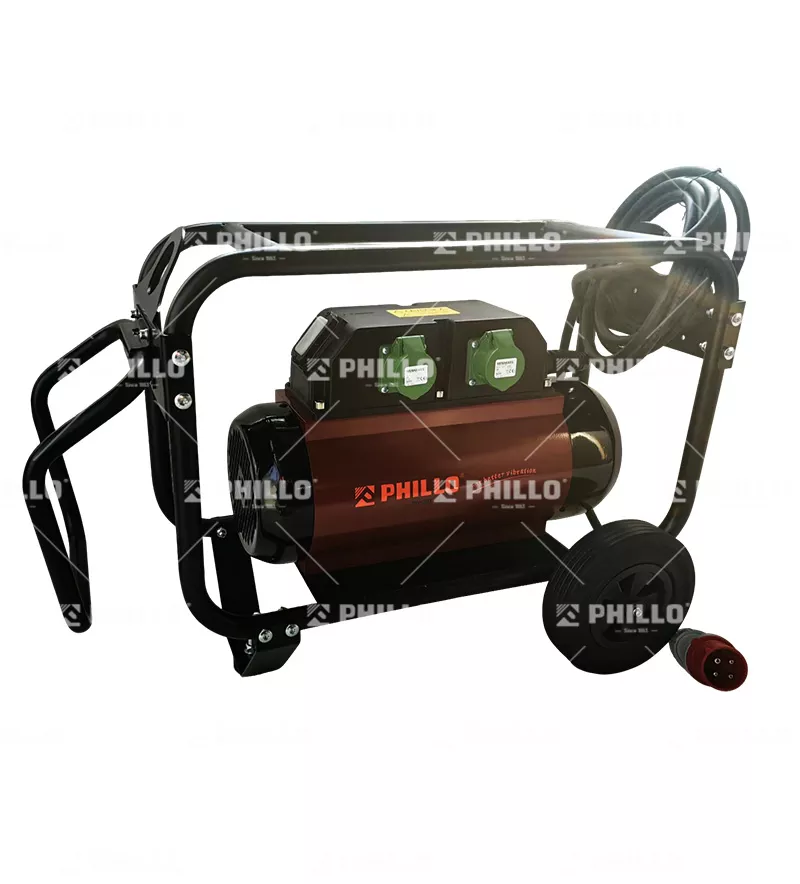

PUM800/PU6200HF vibrators must be operated with electric or electronic converters that transform the standard 50/60 Hz frequency to 200 Hz. This conversion is essential to achieve the ideal vibration speed of 12,000 Rpm. PHILLO PU converters are extremely durable, require minimal maintenance and are, therefore, suited for long-term operation.
No Overheating: Designed for continuous operation without thermal issues.
Easy Maintenance: Simple design ensures minimal maintenance requirements.
Long Life: Durable materials extend the lifespan of the vibrator head.
100% Waterproof: Suitable for use in wet and harsh environments.
Parameters
Model No. | Frame | Outlets | Supply electric cable | Weight | Input | Output | ||||
Voltage and | Current | Power | Voltage and | Current | Power | |||||
Type | N° | m | kg | v | A | kw | V | A | KW | |
PUM800-1 | Handle | 1 | 3.5 | 17 | 230v 1ph | 2.5 | 0.5 | 42V±10% | 11 | 0.8 |
PUM1000-1 | Handle | 1 | 3.5 | 25 | 6 | 1.1 | 14 | 1 | ||
PUM1800-2 | Frame | 2 | 3.5 | 34 | 10 | 1.8 | 25 | 1.8 | ||
PU1800-2 | Frame | 2 | 3.5 | 33 | 400v 3ph | 5 | 2.8 | 25 | 1.8 | |
PU2600-3 | Wheeled | 3 | 3.5 | 41 | 6 | 3.3 | 36 | 2.6 | ||
PU4000-3 | Wheeled | 3 | 5 | 50 | 9 | 5 | 55 | 4 | ||
PU4000-4 | Wheeled | 4 | 5 | 50 | 9 | 5 | 55 | 4 | ||
PU6200-4 | Wheeled | 4 | 5 | 56 | 12 | 6.6 | 85 | 6.2 | ||
Compatibility Table
Maximum number of vibrators that can be connected | ||||
PUM800-1 | 1XPH38 | -- | -- | -- |
PUM1000-1 | 1XPH38 | -- | -- | -- |
PUM1800-2 | 2XPH38 | 1XPH50B | 1XPH59B | 1XPH65B |
PU1800-2 | 2XPH38 | 1XPH50B | 1XPH59B | 1XPH65B |
PU2600-3 | 3XPH38 | 2XPH50B | 2XPH59B | 1XPH65B |
PU4000-3 | 3XPH38 | 3XPH50B | 3XPH59B | 2XPH65B |
PU4000-4 | 4XPH38 | 4XPH50B | 3XPH59B | 2XPH65B |
PU6200-4 | 4XPH38 | 4XPH50B | 4XPH59B | 3XPH65B |
FEATURES
PU - FREQUENCY AND VOLTAGE CONVERTERS | |
APPLICATION | Concrete compaction |
DESCRIPTION | Frequency and voltage converters equipped with permanent magnets, specifically designed to power high frequency concrete vibrators continuously |
FEATURES | |
DUTY CYCLE | Continuous S1 |
INSULATION CLASS | F (T° Max = 155 °C) |
PROTECTION | Overload protection |
WORKING TEMPERATURE | From -20 °C to +40 °C |
CONNECTION BOX | Polyamide (nylon + 30% fibre glass), complete with switch and sockets (42V three phase, IP44 protection) |
SUPPLY CABLE | Neoprene electric cable HO7RN-F with plug |
DESIGN | Smooth and robust cast aluminium body |
