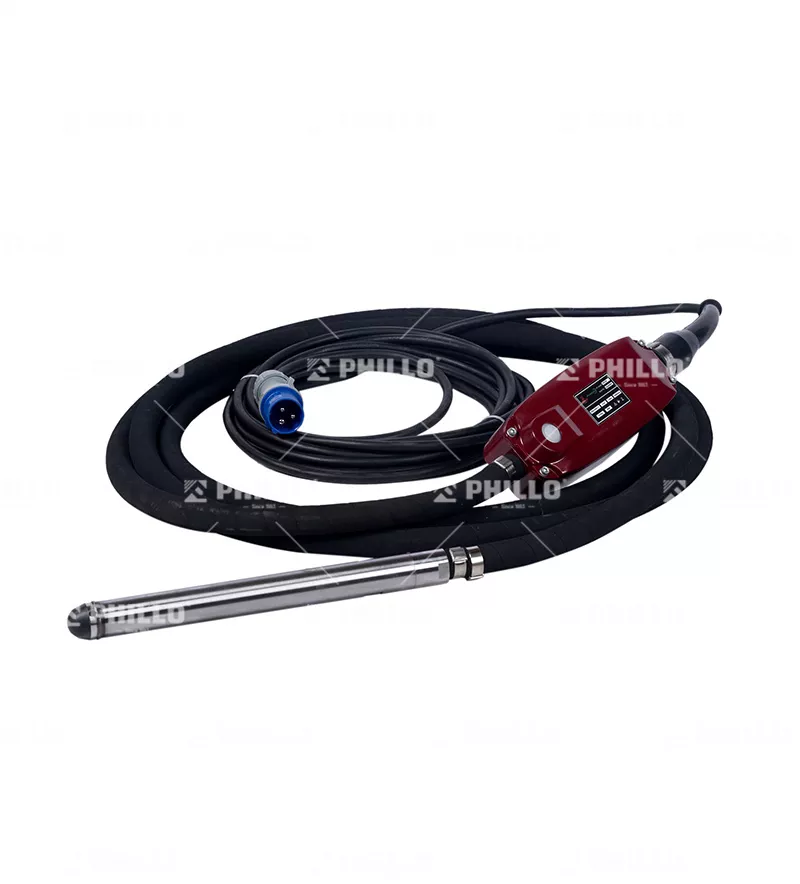

High-frequency internal vibrator with integrated converter (230v)
PHCHigh-frequency internal vibrators feature an eccentric mass housed within the vibrating head, which is connected to a rotating shaft powered by a three-phase asynchronous AC motor. As the shaft rotates, the eccentric mass generates rotational movements, creating the necessary vibration for effective concrete compaction, suitable for any construction sites which need high vibration consolidation performance.
PHILLO PHC vibrators with built-in-converter can be directly connected to standard single-phase power lines (230V, 50/60 Hz), eliminating the need for external converters, simplifying setup and operation. Designed for consistent concrete types and continuous use, PHC offer steady speed, strong wear resistance, and 4-bearing support of PHC38/PHC50/PHC59/PHC65 and 2-bearing support of PHC65 for heavy-duty applications.
Parameters
Model No. | Head | Head | Head | Total | CF | Rated | Rated | Action | Amplitude | Noise | Compaction | INPUT | Poker head protection |
(mm) | (mm) | (kg) | (kg) | (N) | (A) | (kw) | cm | mm | dB A | m3/h | V-Hz-r/min | ||
PHC38 | 38 | 404 | 2.4 | 14.5 | 1700 | 1.5 | 0.5 | 45 | 1.8 | 70 | 20 | 230v (3ph) | IP 68 |
PHC50 | 50 | 468 | 5.2 | 20.0 | 3760 | 2.7 | 0.9 | 70 | 2.1 | 76 | 40 | ||
PHC59 | 59 | 498 | 8.2 | 22.8 | 5640 | 3.0 | 1.1 | 90 | 2.4 | 79 | 45 | ||
PHC65 | 65 | 484 | 9.4 | 24.8 | 7330 | 4.5 | 1.3 | 110 | 2.6 | 79 | 50 |
Converter info | ||
Input power | Input frequency | Input current |
230V+10% - 15% 1ph | 50/60Hz ±5% | 5.5A |
FEATURES
PHC- INTERNAL VIBRATORS WITH INTEGRATED CONVERTER | |
APPLICATION | Concrete compaction |
DESCRIPTION | Equipped with compact electronic frequency converters integrated into the supply cable, characterised by high centrifugal forces, constant speeds and high wear resistance |
FEATURES | |
DUTY CYCLE | Continuous S1 |
INPUT | 230V ± 10% 50/60 Hz 1ph |
NOMINAL FREQUENCY | 12.000 vpm |
INSULATION CLASS | F (T° max = 155 °C) |
PROTECTION CLASS | Head protection IP68 |
WORKING TEMPERATURE | From -20 °C to +40 °C |
HEAD | Equipped with 4 ball bearings greased for life (except of 2 bearings for PHC65) |
SWITCH BUILT-IN | Complete with reinforced gasket |
PROTECTION HOSE | 6 SBR rubber hose with textile reinforcement |
SUPPLY CABLE | 10 m neoprene electric cable HO7RN-F with SCHUKO 220V 2P+1T 16A plug |
CONVERTER | Sturdy cast aluminium box |
INVERTER | Tropicalised and protected against vibration, moisture and shocks with a special resin |
