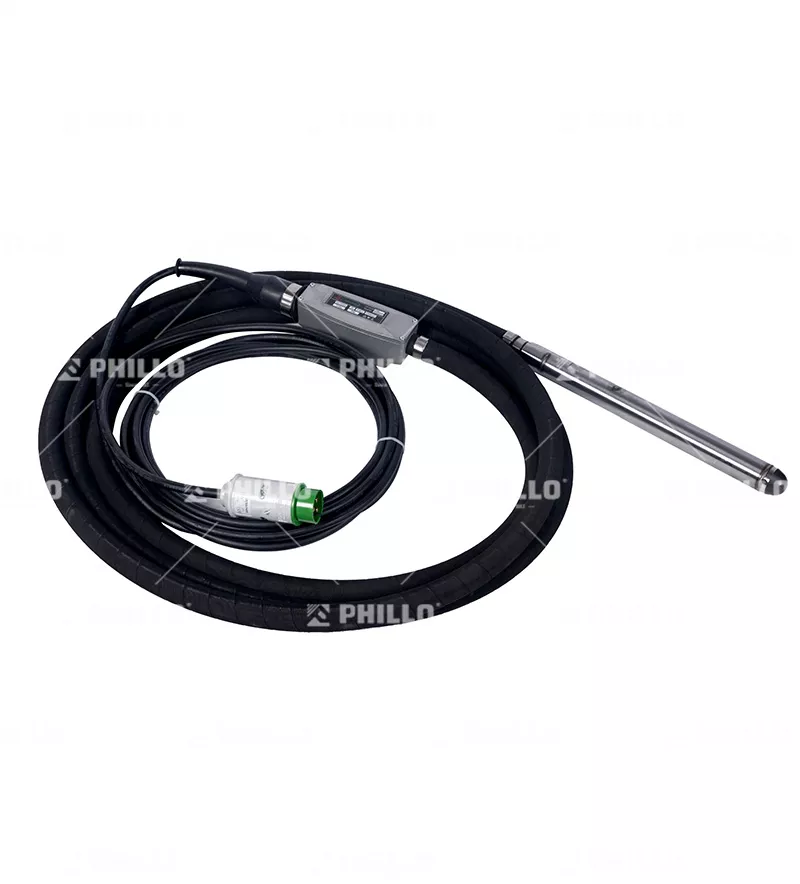

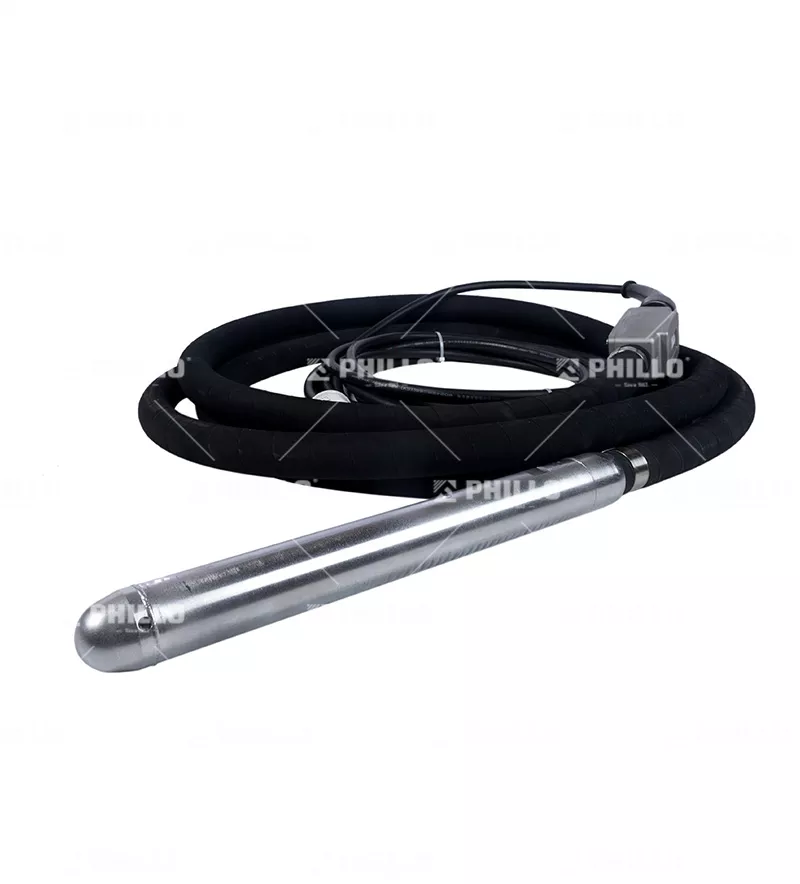

High-frequency internal vibrator (42v)

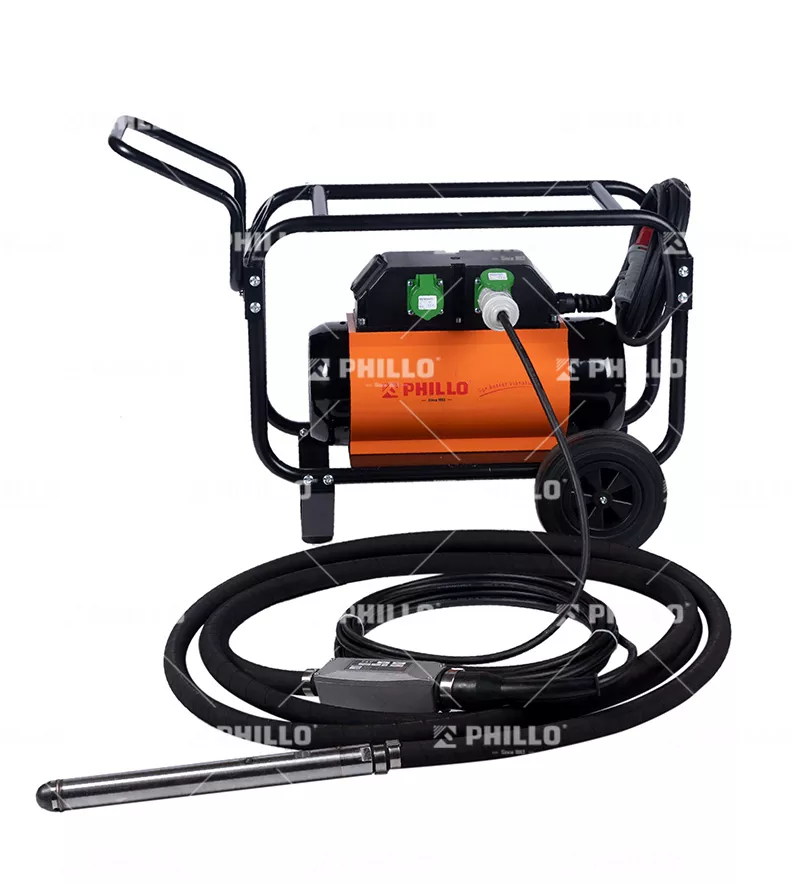

PHPH series High-frequency internal vibrators are operated on a 42V safety voltage, by connection with an external converter which transfer the industrial electricity voltage and frequency ( 220v/50Hz or 400v/50Hz) to the output voltage and frequency (42v/200Hz). Equipped with comprehensive electronic protection, as well as safeguards against overloading, overheating, and phase failure, PH series High-frequency vibrators always put operators’ safety as the priority while keeping the efficient concrete consolidation performance.
Parameters
Model No. | Head | Head | Head | Total | CF | Rated | Rated | Action | Amplitude | Noise | Compaction | INPUT | Poker head protection |
(mm) | (mm) | (kg) | (kg) | (N) | (A) | (kw) | cm | mm | dB A | m3/h | V-Hz-r/min | ||
PH38 | 38 | 404 | 2.4 | 10.6 | 1700 | 8 | 0.5 | 45 | 1.8 | 70 | 20 | 42V(3ph), | IP 68 |
PH50B | 50 | 468 | 5.2 | 16.4 | 3760 | 15 | 0.9 | 70 | 2.1 | 76 | 40 | ||
PH59B | 59 | 498 | 8.2 | 19.6 | 5640 | 17 | 1.1 | 90 | 2.4 | 79 | 45 | ||
PH65B | 65 | 484 | 9.4 | 22.4 | 7330 | 24 | 1.3 | 110 | 2.6 | 79 | 50 |
FEATURES
PH - INTERNAL ELECTRIC VIBRATORS | |
APPLICATION | Concrete compaction |
DESCRIPTION | Internal electric vibrators for concrete consolidation characterised by high performance, consistent speeds, and remarkable resistance to abrasion |
FEATURES | |
DUTY CYCLE | Continuous S1 |
INPUT | 42V - 3ph - 200Hz |
NOMINAL FREQUENCY | 12,000 vpm |
INSULATION CLASS | F (T° max = 155 °C) |
THERMAL SWITCHES | Inside the stator. Max T °C = 150 °C |
WORKING TEMPERATURE | From -20 °C to +40 °C |
HEAD | Protection class IP68 |
SWITCH BOX | Polyamide (nylon +30% fiber glass) with gasket, cable protection,aluminum |
OPERATING HOSE | 6 m SBR rubber hose with inner textile reinforcement |
SUPPLY CABLE | 10 m neoprene electric cable HO7RN-F with 3 pin plug (42V – 3 phase, IP44) |
